Features + advantages

  • Low-wear and durable floor covering: aluminum profile floor or sheet steel
  • Heavy-duty, continuous platform for various applications
  • Choice of lightweight single tires for even higher payload or twin tires for maximum stability
  • Wide track for high driving stability
  • Weight-optimized frame and platform for low tare weight without compromising on robustness and durability
  • Maximum load volume thanks to low platform height and integrated cross members
  • Maximum driving safety and cornering stability even under the toughest conditions, thanks to FEM-optimized design especially for off-road use, ideal for forest roads and transporting timber
  • The bolt-on options enable effortless retrofitting, quick replacement when servicing is required and simplified storage of the relevant parts.
Red timber transport truck with a long log trailer, red stakes, and a loading crane on a wet road.

Vehicle request

Send us your request to receive a personalised offer for this vehicle.
Made in Germany. Since 1878.

Many manufacturers talk about quality and a long service life. We actually deliver it.

With each new vehicle generation, we raise the bar a little higher – to achieve things that our competitors have not. True DOLL® quality is all about usefulness; it's about satisfaction, being ahead of your game, taking pride in what you do. And it's about reliability and safety. Our quality sets the standard – mile after mile, on any terrain.

Vehicle details and equipment

Red timber transport truck with a long log trailer, red stakes, and a loading crane on a wet road.

High-quality aluminium profile base

Comprised of 40-mm aluminium profiles, the base boasts a very low deadweight with high stability and outstanding resistance to wear.

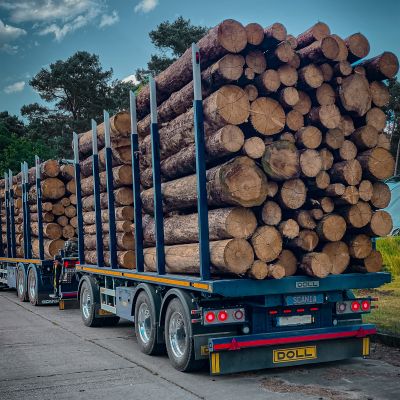

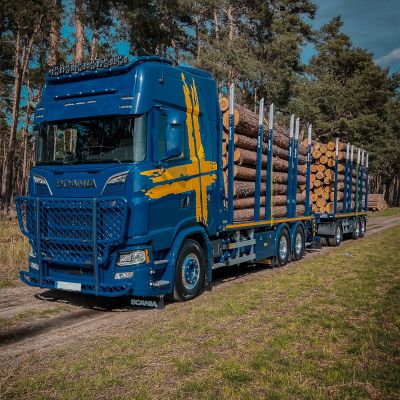

Blue truck with DOLL platform trailer with large tree trunks on a sunny country road, proving its loading capacity and efficiency.

Same high quality, more axles

As a long-established company with decades of experience, we understand the requirements of different applications. This is why we also offer our platform trailer in a triple-axle version for an even higher payload.

Lightweight construction without compromise

Weight-optimized frame and platform for minimum tare weight - robust and durable.

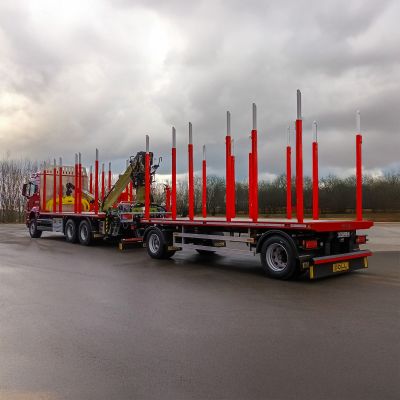

Red timber transport truck with a DOLL platfporm trailer, red stakes, and a loading crane in a forested area.

Maximum load volume

Low platform height and integrated cross members ensure maximum loading volume.

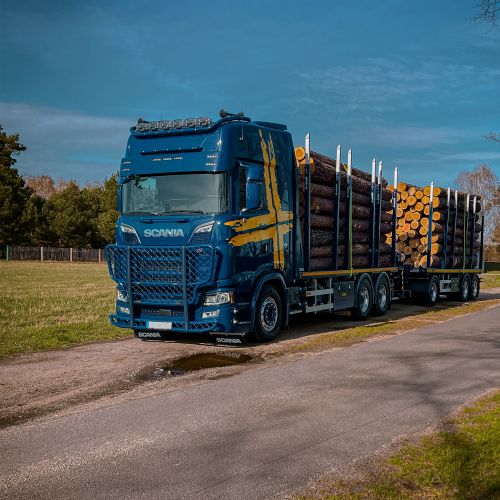

Blue truck with DOLL platform trailer with large tree trunks on a sunny country road, proving its loading capacity and efficiency.

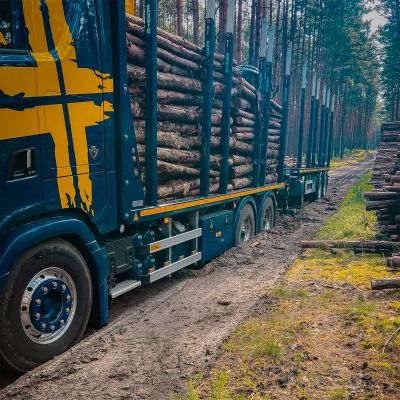

Blue truck with DOLL platform trailer carrying large tree trunks on a forest road, demonstrating its loading capacity and efficiency.

Maximum off-road driving safety

FEM-optimized design for maximum driving safety and cornering stability under the toughest conditions - ideal for off-road applications such as forest roads and timber transport.

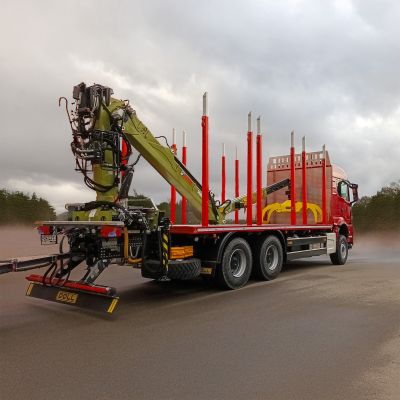

Red timber transport truck with a green loading crane and red stakes, ready for wood transport.

Simple replacement and retrofitting

Bolted options enable effortless retrofitting, quick replacement in the event of servicing and simplified warehousing.

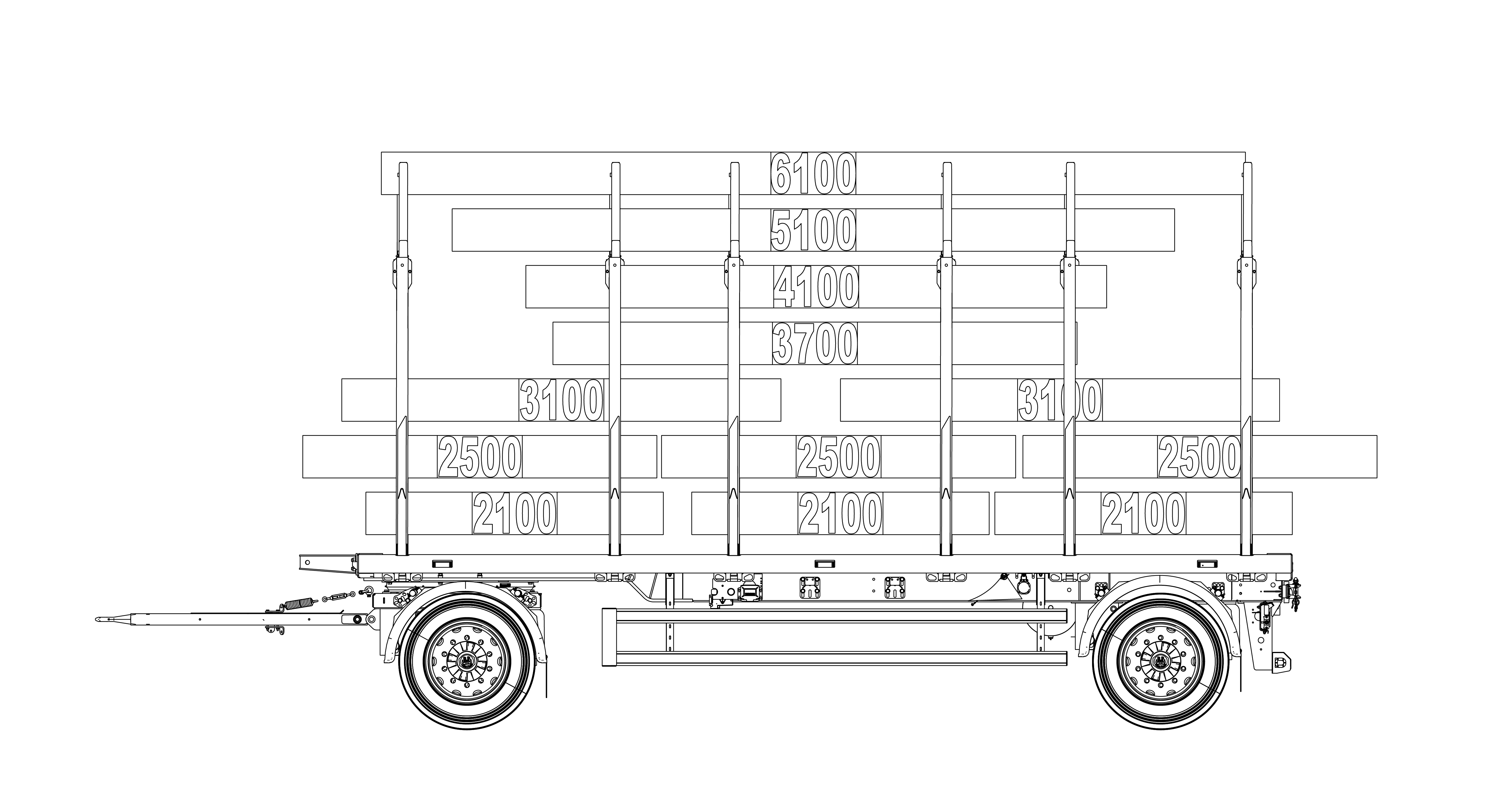

Technical data for A2P-LZ66

Dimensions
  • Deadweight: from approx. 3.900 kg
  • Loading height (loaded): approx. 1.150 mm (with 265/70 R 19.5 tyres)
  • Total length: 8.400 mm (with 1.900 mm drawbar)
  • Platform length: 6.600 mm
  • Wheelbase: 4.900 mm
Axles and chassis
  • Number of axles: 2
  • Chassis: 9 t, 10 t or 12 t drum or disc brakes
  • Suspension: pneumatic
Attachment parts and accessories
  • ExTe stakes
  • Various drawbars
  • Tool boxes
  • A wide range of load securing options
  • A wide range of lighting options
  • Camera systems
  • Various tyre and wheel combinations

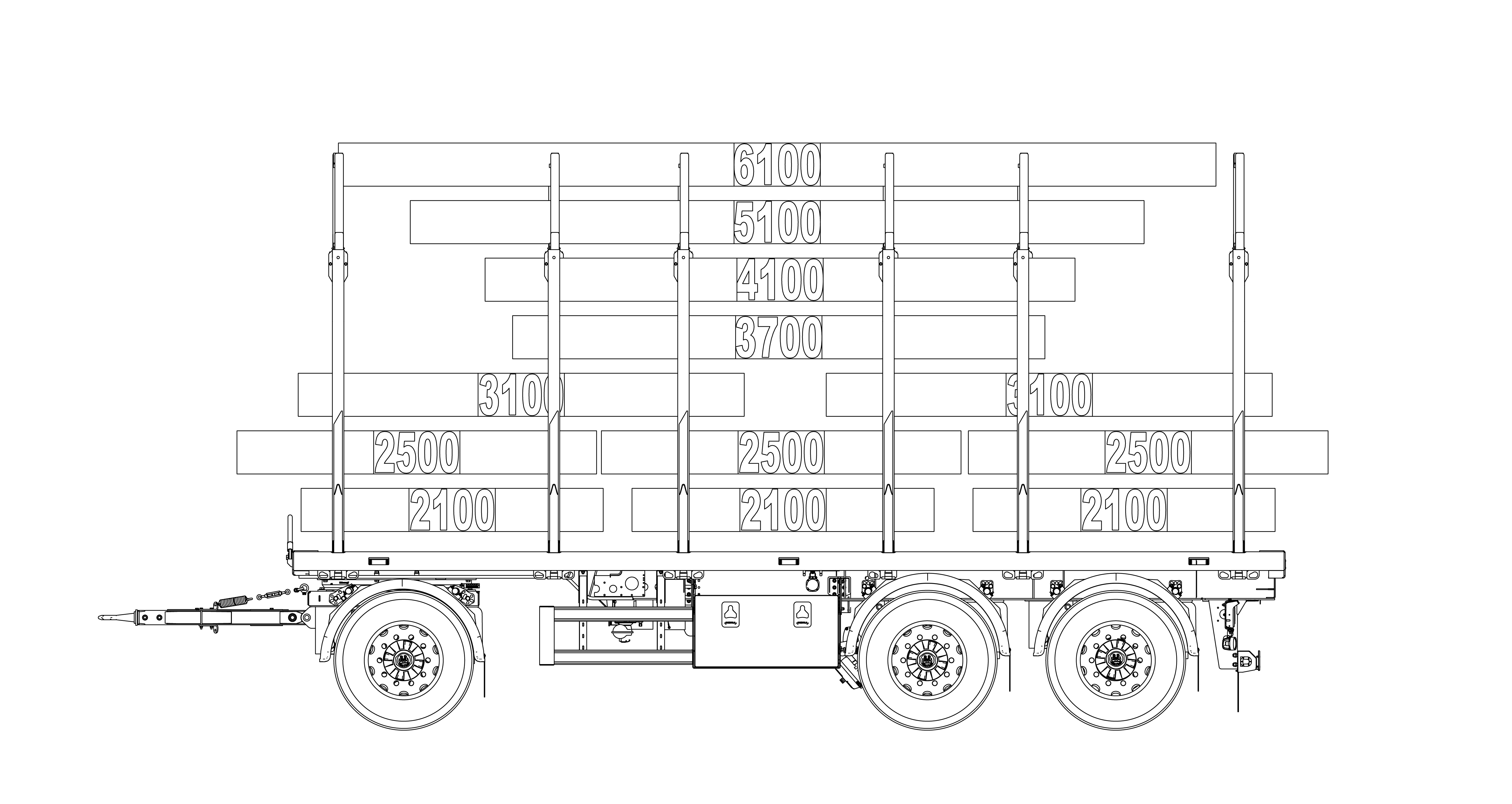

Technical data for A3P-LZ69

Dimensions
  • Deadweight: from approx. 4.700 kg
  • Loading height (loaded): approx. 1.150 mm (with 265/70 R 19.5 tyres)
  • Total length: 8.200 mm (with 1.400 mm drawbar)
  • Platform length: 6.900 mm
  • Wheelbase: 4.300 mm
Axles and chassis
  • Number of axles: 3
  • Chassis: 9 t, 10 t or 12 t drum or disc brakes
  • Suspension: pneumatic
Attachment parts and accessories
  • ExTe stakes
  • Axle lift for 2nd or 3rd axle
  • Various drawbars
  • Tool boxes
  • A wide range of load securing options
  • A wide range of lighting options
  • High-quality camera systems
  • Various high-quality tyre and wheel combinations
