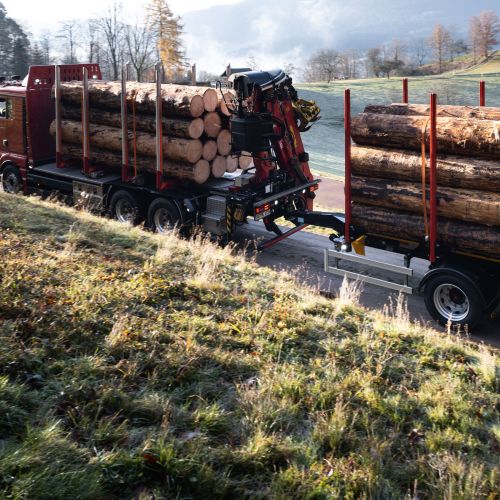

Features + advantages
- Transport timber lengths between 2 and 6 metres
- Payload-oriented design and weight-optimised steel construction
- Very low deadweight
- Twin tyres for maximum stability, whether parked or driving
„I was very impressed by the low road positioning of the DOLL central axle trailer. It also has countless other useful features, including a drawtube hose guide and optimised supports. These are really helpful in everyday use."
Eduard Maier, Managing Director, Eduard Maier Langholztransporte
Vehicle details and equipment
Facts + components
- Cables protected in the drawtube
- Load securing points integrated into the frame
- Bulb holders mounted on side of frame
- Bolsters and stakes available in a range of premium materials

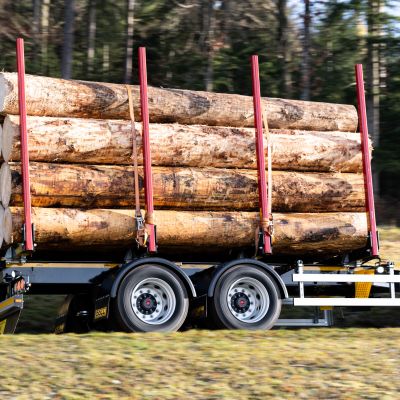

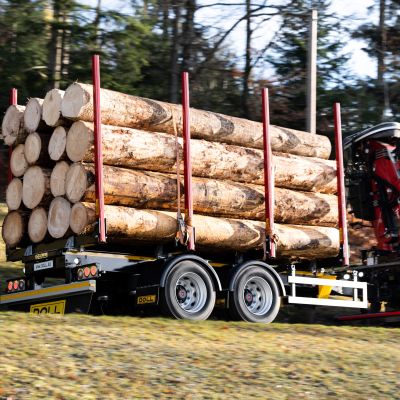

Weighing in at just 2,700 kg, the A2T-LZ53 is incredibly light. It boasts 5,250 mm of loading length for transporting one or two timber stacks with ease.
With an overall length of 6,000 mm, the A2T-LZ35 Shorty version really is short. Ideal for transporting one stack of timber, it makes manoeuvring in tight spots a breeze. The optional bolted bolster provides an extremely low loading height of just 1,000 mm.

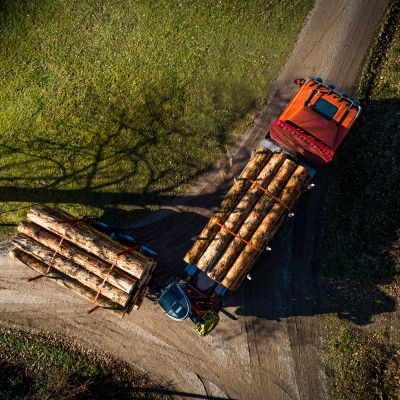

Easier manoeuvring
The strong Y-drawtube gives the driver complete freedom to manoeuvre, with a steering lock angle of up to 90°.

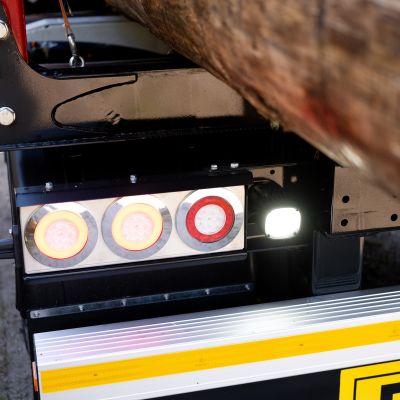

Full LED lighting at rear
Optimal illumination thanks to full LED lighting with dynamic indicators and flashing side marker lights. A solution that not only looks great, but boosts road safety too.

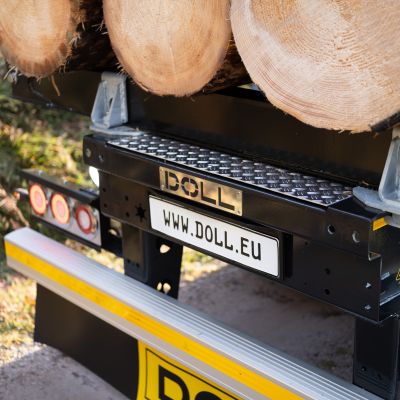

Flush aluminium cover plates
Countersunk fillister head screws and a flush surface finish make it easy to sweep away any leaves or bark left behind.
Technical data
for the A2T-LZ53

- Deadweight: from approx. 2,700 kg
- Loading height (loaded): approx. 1,230 mm (with 265/70 R 22.5 tyres)
- Overall length: 7,250 mm
- Loading length: 5,300 mm
- Wheelbase: 1,310 mm
- Chassis: 9 t, 10 t or 12 t drum or disc brakes
- Suspension: pneumatic
- DOLL MAMMUT or ExTe bolsters and stakes
- Various drawbars
- Tool boxes
- A wide range of load securing options
- A wide range of lighting options
- Camera systems
- Various tyre and wheel combinations
Technical data
for the A2T-LZ35 Shorty

- Deadweight: from approx. 2,600 kg
- Loading height (loaded): approx. 1,000 mm (with 265/70 R 22.5 tyres)
- Overall length: 4,400 mm
- Loading length: 3,500 mm
- Wheelbase: 1,310 mm
- Chassis: 9 t, 10 t or 12 t drum or disc brakes
- Suspension: pneumatic
- DOLL MAMMUT or ExTe bolsters and stakes
- Various drawbars
- Tool boxes
- A wide range of load securing options
- A wide range of lighting options
- Camera systems
- Various tyre and wheel combinations
DOLL rapid+ vehicles – ready to use
At DOLL, reliability is all part of the package – we’re inspired by your everyday transport activities and invigorated by both the discussions we have with our customers and our unwavering dedication to sophisticated engineering in our vehicles.
Fast. Faster. Rapid+.

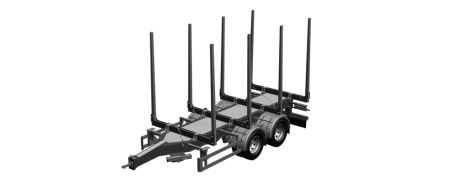

Our A2T-LZ35 Shorty and A2G-LZ53 central axle trailers are available as rapid+ series vehicles with ALPHA and SIERRA equipment options – and are ready to use immediately. In addition, you benefit from an exceptional price advantage of up to 6,000 €.

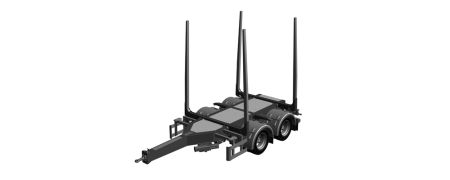

A2T-LZ35 Shorty
A2T-LZ53
Worldwide.
