Features + advantages

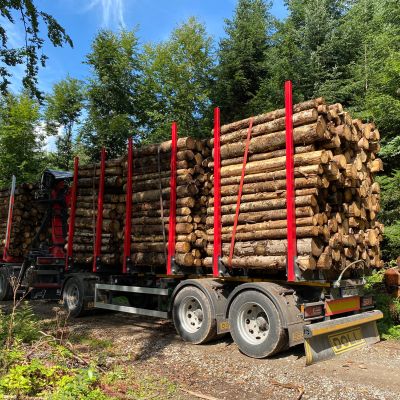

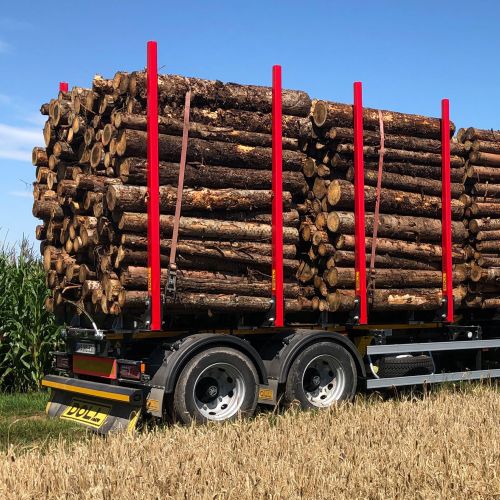

  • Transport timber lengths between 2 and 6 metres
  • Very low deadweight
  • Offset frame for extremely low loading height
  • Payload-oriented design and weight-optimised steel construction
  • Twin tyres for maximum stability, whether parked or driving

Vehicle request

Send us your request to receive a personalised offer for this vehicle.

„Driving stability is important to us, so we always opt for the A3K three-axle trailer from DOLL. Stability is excellent. And we know we can rely on exceptional DOLL quality."

Thomas Gerlach, Managing Director, Dreiheide Transport GmbH

Made in Germany. Since 1878.

Many manufacturers talk about quality and a long service life. We actually deliver it.

With each new vehicle generation, we raise the bar a little higher – to achieve things that our competitors have not. True DOLL quality is all about usefulness; it's about satisfaction, being ahead of your game, taking pride in what you do. And it's about reliability and safety. Our quality sets the standard – mile after mile, on any terrain.

Vehicle details and equipment

Facts + components
  • Load securing points integrated into the frame, plus optional bolted points
  • Bulb holders mounted on side of frame
  • Bolsters and stakes available in a range of premium materials

Flush aluminium cover plates

Countersunk fillister head screws and a flush surface finish make it easy to sweep away any leaves or bark left behind.

Full LED lighting at rear

Optimal illumination thanks to full LED lighting with dynamic indicators and flashing side marker lights. A solution that not only looks great, but boosts road safety too.

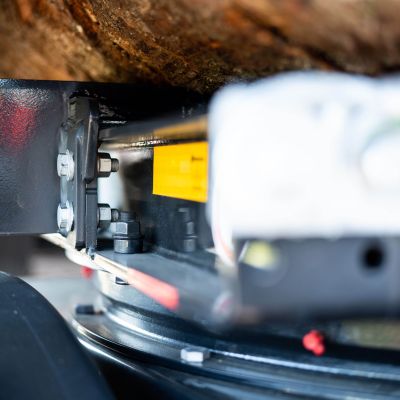

All bolsters bolted

For easy servicing and complete flexibility, we don't weld our bolsters into place. At DOLL, even the first bolster on the drop is bolted.

Technical data

Technical data for A3K-LZ69

Dimensions

  • Deadweight: from approx. 3,950 kg
  • Loading height (loaded): approx. 1,240 mm (with 275/70 R 22.5 tyres)
  • Total length: 8,380 mm (with 1,400 mm drawbar)
  • Loading length: 6,900 mm
  • Wheelbase: 4,750 mm

Axles and chassis

  • Chassis: 9 t, 10 t or 12 t Drum or disc brakes
  • Suspension: pneumatic

Attachment parts and accessories

  • DOLL MAMMUT or ExTe bolsters and stakes
  • Various drawbars
  • Tool boxes
  • A wide range of load securing options
  • A wide range of lighting options
  • Camera systems
  • Various high-quality tyre and wheel combinations
