Facts + components

  • Transport timber lengths between 2 and 6 metres
  • Offset frame for extremely low loading height
  • Very low deadweight
  • Payload-oriented design and weight-optimised steel construction
  • Single tyres for lower rolling resistance, less wear and lower fuel consumption

Vehicle request

Send us your request to receive a personalised offer for this vehicle.
Made in Germany. Since 1878.

Many manufacturers talk about quality and a long service life. We actually deliver it.

With each new vehicle generation, we raise the bar a little higher – to achieve things that our competitors have not. True DOLL® quality is all about usefulness; it's about satisfaction, being ahead of your game, taking pride in what you do. And it's about reliability and safety. Our quality sets the standard – mile after mile, on any terrain.

Vehicle details and equipment

Facts + components
  • Load securing points integrated into the frame, plus optional bolted points
  • Bulb holders mounted on side of frame
  • Bolsters and stakes available in a range of premium materials
A2K-LE59-LE

Lightweight for higher payload

Weighing in at just 2,750 kg, the incredibly light deadweight of this vehicle is achieved through the use of a special weight-optimised frame in conjunction with light 9-t axles.

A2K-LE64

Extended load floor

There's a 50 cm difference between the lightweight A2K-LE59-L and the A2K-LE64 with extended load floor. Whichever option you choose, you're guaranteed to benefit from a low deadweight and maximum robustness.

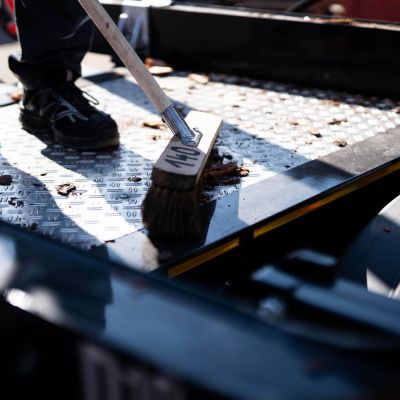

Flush aluminium cover plates

Countersunk fillister head screws and a flush surface finish make it easy to sweep away any leaves or bark left behind.

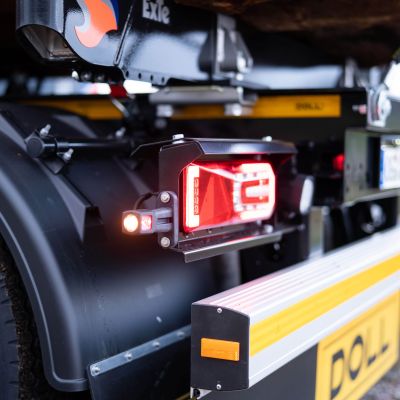

Full LED lighting at rear

Optimal illumination thanks to full LED lighting with dynamic indicators and flashing side marker lights. A solution that not only looks great, but boosts road safety too.

All bolsters bolted

For easy servicing and complete flexibility, we don't weld our bolsters into place. At DOLL®, even the first bolster on the drop is bolted.

Technical data for
A2K-LE64

Dimensions
  • Deadweight: from approx. 2,950 kg
  • Loading height: 1,080 mm (with 385/55 R 22.5 tires)
  • Total length: 8,400 mm (with 1,900 mm drawbar)
  • Loading length: 6,400 mm
  • Wheelbase: 4,400 mm
Axles and chassis
  • Chassis: 9 t, 10 t or 12 t drum or disc brakes
  • Suspension: pneumatic
Attachment parts and accessories
  • DOLL® MAMMUT or ExTe bolsters and stakes
  • Various drawbars
  • Tool boxes
  • A wide range of load securing options
  • A wide range of lighting options
  • Camera systems
  • Various high-quality tyre and wheel combinations

Technical data for
A2K-LE59-L

Dimensions
  • Deadweight: from approx. 2,750 kg
  • Loading height: 1,080 mm (with 385/55 R 22.5 tires)
  • Total length: 7,950 mm (with 1,900 mm drawbar)
  • Loading length: 5,900 mm
  • Wheelbase: 4,400 mm
Axles and chassis
  • Chassis: 9 t or 10 t drum or disc brakes
  • Suspension: pneumatic
Attachment parts and accessories
  • DOLL® MAMMUT or ExTe bolsters and stakes
  • Various drawbars
  • Tool boxes
  • A wide range of load securing options
  • A wide range of lighting options
  • Camera systems
  • Various high-quality tyre and wheel combinations
