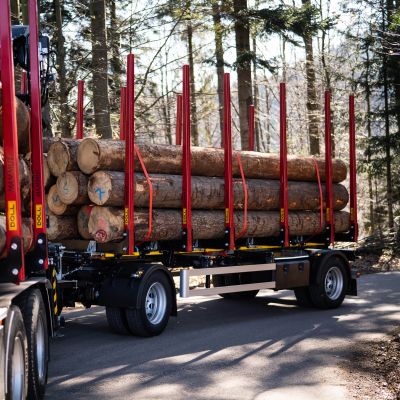

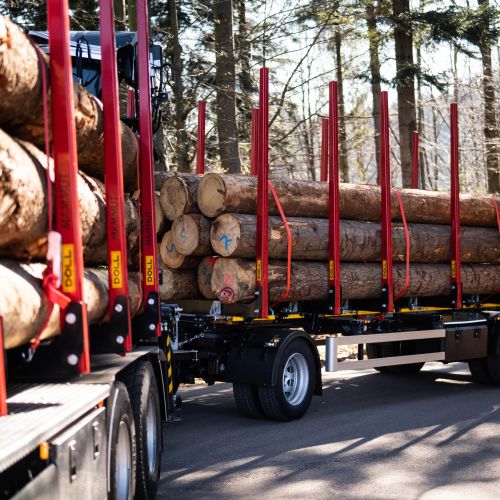

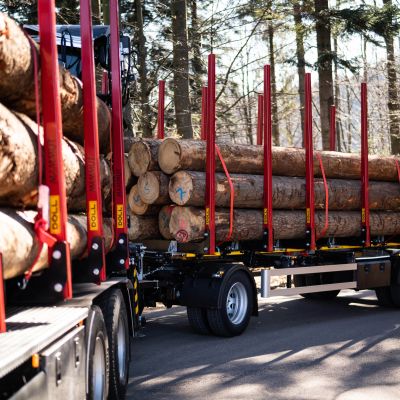

Features + advantages

  • Transport timber lengths between 2 and 6 metres
  • Flexible positioning: bolted bolsters on straight frame
  • Very low deadweight
  • Payload-oriented design and weight-optimised steel construction
  • Twin tyres for maximum stability, whether parked or driving

rapid+ series model

This vehicle is available as a rapid+ series model and is ready to use immediately.

When it comes to driving stability and handling characteristics, our DOLL dual-axle trailers really are something special. Their road holding is perfect and their weight is top class. We drive the lightweight version, which weighs in at just over three tons with four bolsters when empty.

Wolfgang Blaß, Managing Director, Wolfgang Blaß Transport

Vehicle request

Send us your request to receive a personalised offer for this vehicle.

Made in Germany. Since 1878.

Many manufacturers talk about quality and a long service life. We actually deliver it.

With each new vehicle generation, we raise the bar a little higher – to achieve things that our competitors have not. True DOLL quality is all about usefulness; it's about satisfaction, being ahead of your game, taking pride in what you do. And it's about reliability and safety. Our quality sets the standard – mile after mile, on any terrain.

Vehicle details and equipment

Facts + components
  • Load securing points integrated into the frame, plus optional bolted points
  • Bulb holders mounted on side of frame

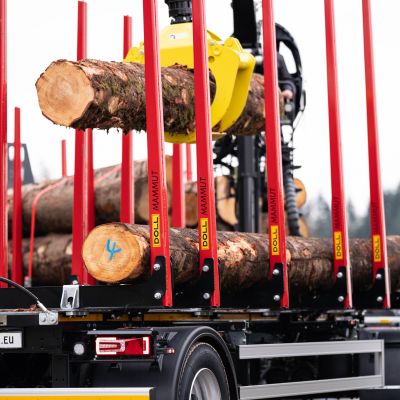

  • Bolsters and stakes available in a range of premium materials
A2G-LZ59-L

Lightweight for higher payload

Weighing in at just 2,800 kg, the incredibly lightweight design of this vehicle is achieved through the use of a special weight-optimised frame in conjunction with light 9-t axles.

A2G-LZ64

Extended load floor

There's a 500-mm difference between the lightweight A2G-LZ59-L and the A2G-LZ64 with extended load floor. Whichever option you choose, you're guaranteed to benefit from a low deadweight and maximum robustness.

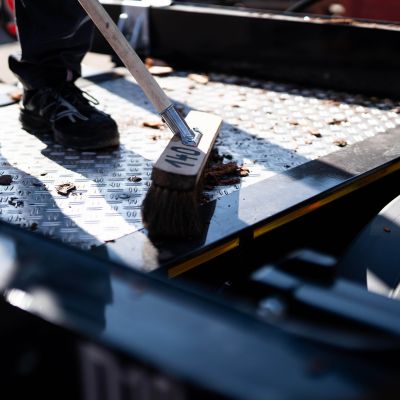

Flush aluminium cover plates

Countersunk fillister head screws and a flush surface finish make it easy to sweep away any leaves or bark left behind.

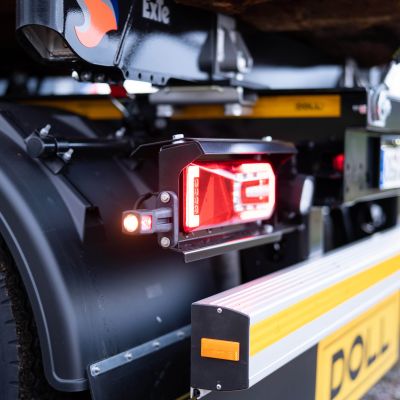

Full LED lighting at rear

Optimal illumination thanks to full LED lighting with dynamic indicators and flashing side marker lights. A solution that not only looks great, but boosts road safety too.

Technical data for A2G-LZ64

Dimensions
  • Deadweight: from approx. 3,000 kg
  • Loading height (loaded): approx. 1,259 mm (with 265/70 R 22.5 tyres)
  • Total length: 8,425 mm (with 1,900 mm drawbar)
  • Loading length: 6,400 mm
  • Wheelbase: 4,900 mm
Axles and chassis
  • Chassis: 9 t, 10 t or 12 t drum or disc brakes
  • Suspension: pneumatic
Attachment parts and accessories
  • DOLL MAMMUT or ExTe bolsters and stakes
  • Various drawbars
  • Tool boxes
  • A wide range of load securing options
  • A wide range of lighting options
  • Camera systems
  • Various tyre and wheel combinations

Technical data for A2G-LZ59-L

Dimensions
  • Deadweight: from approx. 2,800 kg
  • Loading height (loaded): approx. 1,259 mm (with 265/70 R 22.5 tyres)
  • Total length: 7,950 mm (with 1,900 mm drawbar)
  • Loading length: 5,900 mm
  • Wheelbase: 4,400 mm
Axles and chassis
  • Chassis: 9 t or 12 t drum or disc brakes
  • Suspension: pneumatic
Attachment parts and accessories
  • DOLL MAMMUT or ExTe bolsters and stakes
  • Various drawbars
  • Tool boxes
  • A wide range of load securing options
  • A wide range of lighting options
  • High-quality camera systems
  • Various high-quality tyre and wheel combinations

DOLL rapid®+ vehicles – ready to use

At DOLL, reliability is all part of the package – we’re inspired by your everyday transport activities and invigorated by both the discussions we have with our customers and our unwavering dedication to sophisticated engineering in our vehicles.

Fast. Faster. Rapid+.

Our A2G-LZ59-L and A2G-LZ64 2-axle short timber trailers are available as rapid+ series vehicles with ALPHA and SIERRA equipment options – and are ready to use immediately. In addition, you benefit from an exceptional price advantage of up to 6,000 €.

A2G-LZ59-L

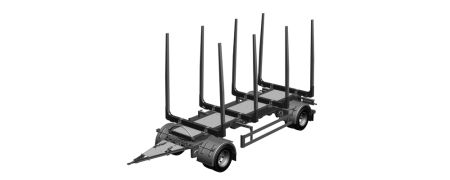

A2G-LZ59-L ALPHA

  • Dead weight: 2,900 kg
  • Timber length: 2x2 m, 2x3 m, 1x4 m, 1x5 m, 1x6 m
  • 4 x ExTe D7 bolsters + stakes
  • 9 t disc brakes
  • Alcoa Dura-Bright aluminium rims
  • 265/70 tyres
  • Full LED lighting
  • Frame/bolster colour: graphite black

A2G-LZ64

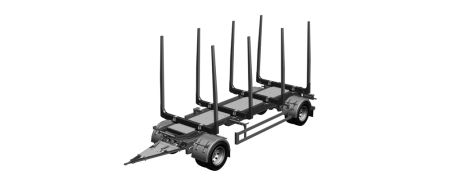

A2G-LZ64 ALPHA

  • Dead weight: 3,550 kg
  • Timber length: 2x2 m, 2x3 m, 1x4 m, 1x5 m, 1x6 m
  • 4 x ExTe D7 bolsters + stakes
  • 12 t disc brakes
  • Alcoa Dura-Bright aluminium rims
  • 275/70 tyres
  • Full LED lighting
  • Frame/bolster colour: graphite black

A2G-LZ64 SIERRA

  • Dead weight: 3,900 kg
  • Timber length: 2x2 m, 2x3 m, 1x4 m, 1x5 m, 1x6 m
  • 4 x DOLL MAMMUT bolsters + stakes
  • 12 t drum brakes
  • Steel rims
  • 275/70 tyres
  • Full LED lighting
  • Frame/bolster colour: graphite black
